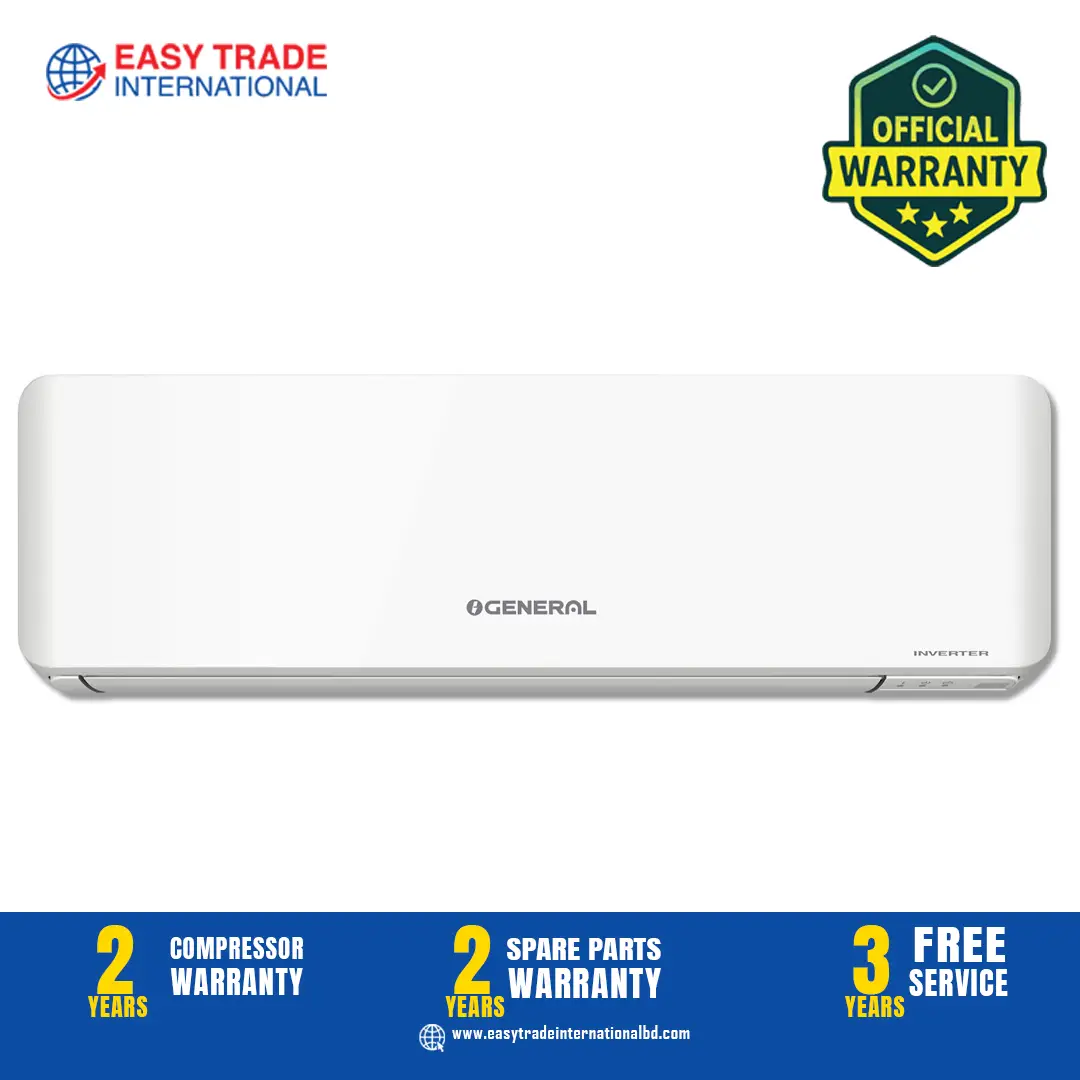

General ASGG-24CPTA Full Specification
|
Item |
|
|
Model |
✅ ASGG-24CPTA-V |
|
Brand |
|
|
AC Type |
Split AC |
|
BTU |
2.0-Ton (24000Btu/Hr) |
|
Coverage |
15-Meters |
|
Filter Type |
Auto Clean |
|
Fan Speed |
1160m3/h |
|
Air Control |
Auto Up / Down Swing |
|
Remote Control |
Yes |
|
Temperature Adjustment |
14-52 Degrees |
|
Energy Efficient |
Inverter |
|
Power Consumption |
2390W |
- Powerful cooling
- Eco-friendly R32 gas
- Hyper tropical inverter
- High-Reliability System (HRS)
- The PCB comes with a circuit board that can control the operation of the air conditioner and is designed to withstand spike voltages up to 450V
- Clean the air firmly to catch the particles of 0.3~2.5μm
- 220V power source
- 50Hz frequency
- Low noise design
- 1.76-7.04kW cooling capacity
- 2.95 W/W EER cooling
- 5.64 CSPF cooling
- 1160m3/h indoor airflow rate
- 2.7 I/h moisture removal-cooling
- 41dB(A) low indoor sound pressure
- 51dB(A) high outdoor sound pressure
- 6.35mm small / 12.7mm large piping connection
- 7.5-meters standard pipe length
- 280 x 980 x 240mm indoor dimension
- 632 x 799 x 290mm outdoor dimension
- 36Kg outdoor weight
- 12.5Kg indoor weight
- The maximum height difference is 15-meters
- 18-32˚C indoor operation range
- 18-52˚C outdoor operation range
- Warranty
- Electrical Spare Parts: 2 Years
Compressor: 2 Years
Free Service: 3 Years
Country of Origin: Japan
Country of Assemble: Thailand
General ASGG-24CPTA Description
General ASGG-24CPTA-V is a powerful airflow and reliable 2-ton air conditioner. An inverter is an energy-saving technology that efficiently controls the motor speed to save electricity. This air conditioner has a revolutionary PM2.5 filter that allows it to capture dust particles between 0.3 and 2.5 mm in size while still allowing for the powerful entry of clean air. New system development extends the outdoor temperature range from 46°C to 52°C. Provides a cool and comfortable environment even at 52 degrees Celsius.
